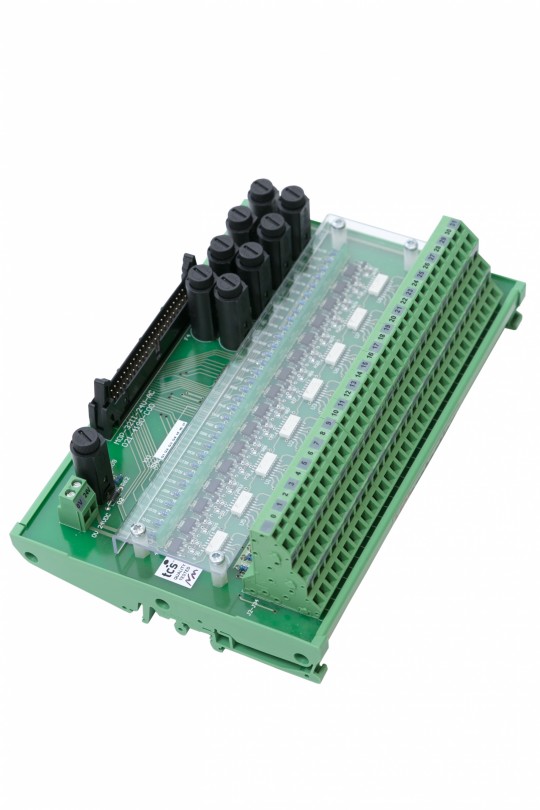

32 Way Isolated Input Module

#MOP-32II



  • 32 way fused 24VAC digital inputs
  • Numbering systems to suit different PLCs
  • Spring cage connectors
  • On / Off LED indication
  • Glass fuse protection (1 fuse per 4 inputs)
  • LED blown fuse indication
  • Input isolation DIP switches
  • DIN rail mount
  • Common ribbon cable configuration

Save time and cost while protecting your valuable automation investment.

Note: PLC to module wiring assembly is not included with the fuse block – order separately. Cabling comes factory assembled and tested – just plug it in, connect the field wiring and run.

This product is designed to meet Council Directive 73/23/EEC low voltage, by applying the safety requirements EN 61131-2. This equipment is classified as open equipment and must be installed (mounted) in an enclosure during operation as a means of providing safety protection

Specifications

Input TypeSinking

Input Current Max10mA AC

Output Current Max30mA

Fuse Group Current250mA @ 24VDC

Operating Temperature0̊ to 60̊ C

Dimensions (W x H x L)130mm x 70mm x 195mm
