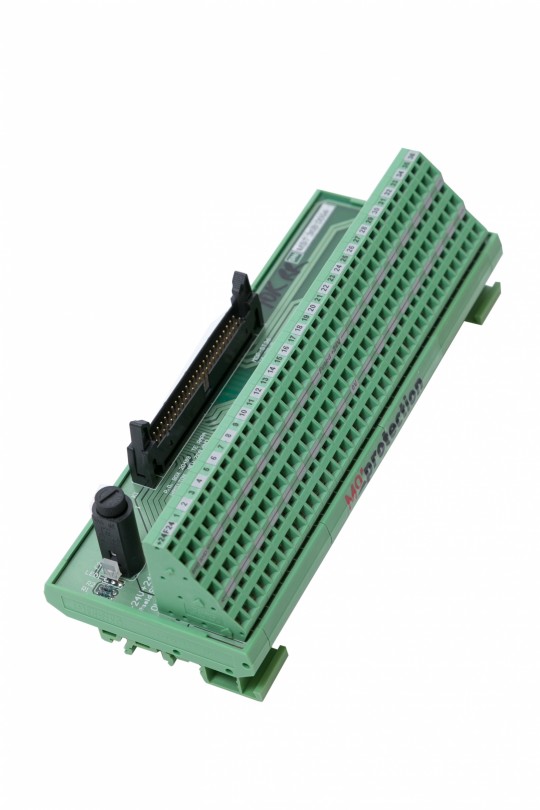

36 Way Straight Through Connector



  • 36 way RTB field wiring connector
  • 24VDC digital I/O
  • Common power supply fuse
  • Power and blown fuse LED indication
  • Power on / off LED indication
  • Numbering systems to suit different PLCs
  • Spring cage connectors
  • DIN rail mount
  • Common ribbon cable configuration

Save time and cost while protecting your valuable automation investment.

Note: PLC to module wiring assembly is not included with the fuse block – order separately. Cabling comes factory assembled and tested – just plug it in, connect the field wiring and run.

This product is designed to meet Council Directive 73/23/EEC low voltage, by applying the safety requirements EN 61131-2. This equipment is classified as open equipment and must be installed (mounted) in an enclosure during operation as a means of providing safety protection


Fuse Type Glass 250mA
Fuse Group Current 1A per channel
Number of Terminals 36
Voltage Range 10 to 24VDC
Operating Temperature 0̊ to 60̊ C
Dimensions (W x H x L) 76.5mm x 65mm x 204mm
