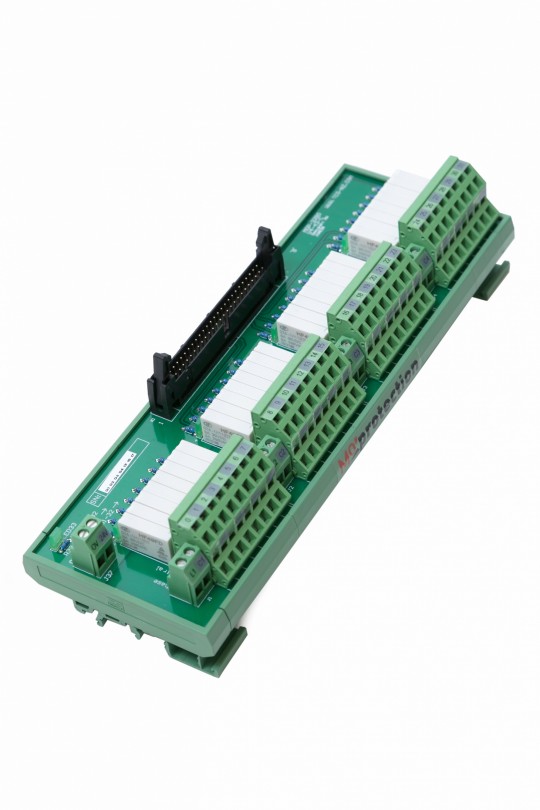

32 Way Relay Output Module



  • 32 way relay outputs from 24VDC PLC module
  • Normally open contacts rated at 230 VAC
  • Contacts 5 Amp rating
  • On / Off LED indication for each output
  • Blown fuse LED indication
  • Numbering systems to suit different PLCs
  • Spring cage connectors
  • DIN rail mount
  • Common ribbon cable configuration

Save time and cost while protecting your valuable automation investment.

Note: PLC to module wiring assembly is not included with the fuse block – order separately. Cabling comes factory assembled and tested – just plug it in, connect the field wiring and run.

This product is designed to meet Council Directive 73/23/EEC low voltage, by applying the safety requirements EN 61131-2. This equipment is classified as open equipment and must be installed (mounted) in an enclosure during operation as a means of providing safety protection


Relay 24VDC – 230VAC
Module Current 5 Amps @ 24VDC
Maximum Voltage 60VDC
Normal Voltage Range 10 to 32VDC
Operating Temperature 0̊ to 60̊ C
Dimensions (W x H x L) 77mm x 51mm x 224mm
