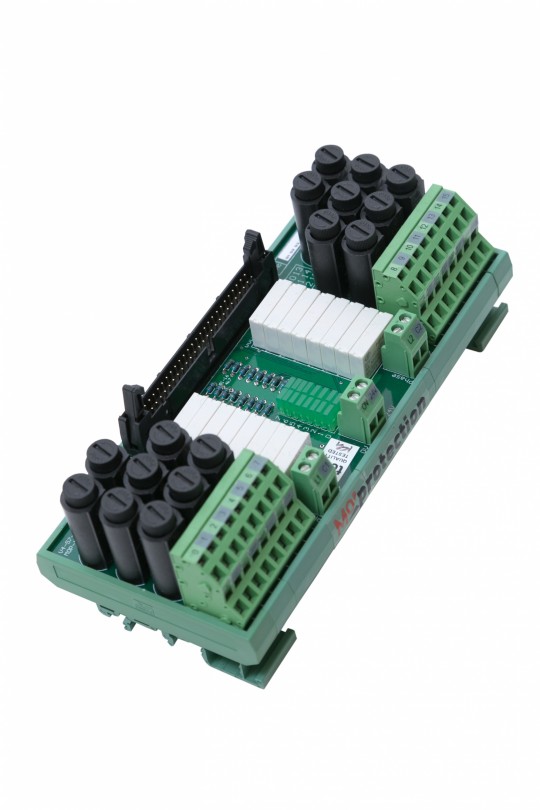

- 16 way relay outputs from 24VDC PLC module
- Normally open contacts rated at 230 VAC
- Individual fused outputs (x amps up to 5 Amps)
- On / Off LED indication for each output
- Blown fuse LED indication
- Numbering systems to suit different PLCs
- Spring cage connectors
- DIN rail mount
- Common ribbon cable configuration
Save time and cost while protecting your valuable automation investment.
Note: PLC to module wiring assembly is not included with the fuse block – order separately. Cabling comes factory assembled and tested – just plug it in, connect the field wiring and run.
This product is designed to meet Council Directive 73/23/EEC low voltage, by applying the safety requirements EN 61131-2. This equipment is classified as open equipment and must be installed (mounted) in an enclosure during operation as a means of providing safety protection
Specifications
Fused Glass 250mA
Relay 24VDC – 230VAC
Module Current 2 Amps @ 24VDC
Voltage Range 10 to 60VDC
Operating Temperature 0̊ to 60̊ C
Dimensions (W x H x L) 75mm x 58mm x 158mm
