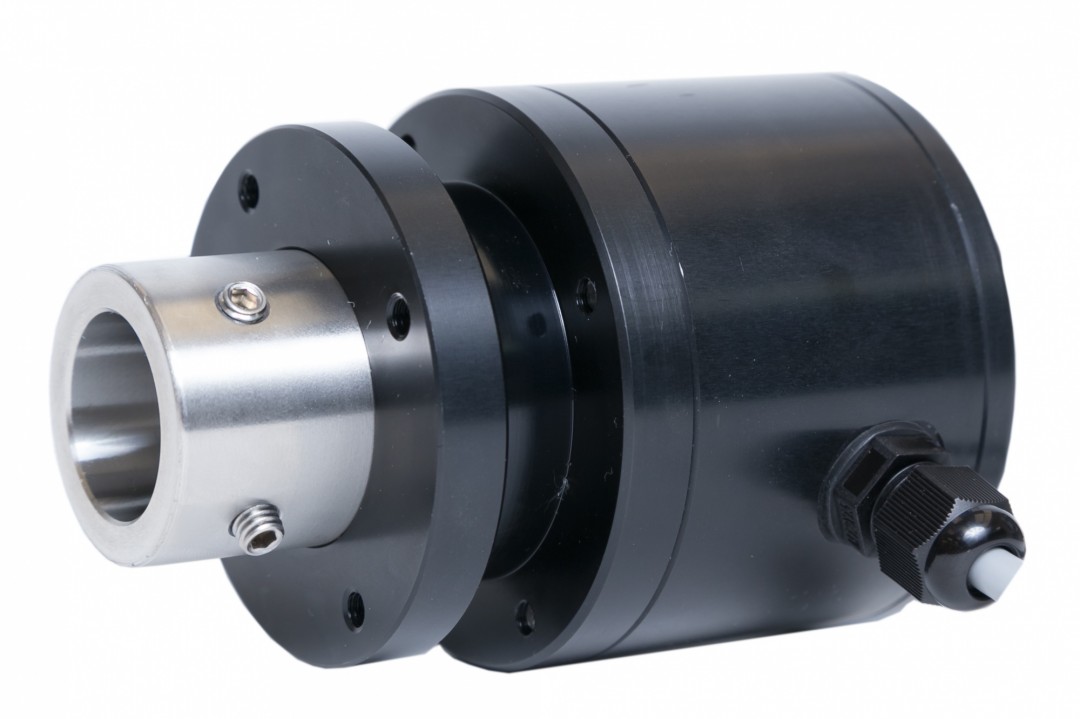

Absolute Incremental Encoder


Flexible, fast and accurate positional sensing is a feature of our Absolute Incremental Encoder.

The encoder uses a magnet and a magnetic sensing element to determine the angular position of the sensor, which allows for much faster, more accurate position sensing.

The standard version of this sensor provides a digital output signal, producing 360 pulses per revolution and a rotation indicator signal.

The sensor can be configured to produce up to 1000 pulses per revolution, or it can provide positional feedback through serial interfaces, either RS485 or RS232.


  • Rugged aluminium enclosure
  • IP67 sealed enclosure
  • Digital or communication based output
  • Magnetic sensing element


Ordering Information - TCS Part Numbers005-4012-000
DescriptionAbsolute Incremental Encoder
TechnologyMagnetic Encoder
Digital outputs x 3Up to 1k pulses/rev
0-12V 100mA max
npn with 1k pull-up
Digital inputs x 10-12V 0.6mA
Serial x 1RS232
Rotation indicatorOutput 0V when idle, 12V when rotating
Supply Voltage12V DC
EnclosureAnodised Aluminium
Dimensions75(Diameter) x 110mm
Relative Humidity5% to 95%
Operating Temperature-25°C to 70°C (-18°F to 158°F)
Cable4 core 5m glanded
