CH Valves IO Module



The CH Valves Module is a digital IO card designed for ultra-rugged and vehicle mounted applications.

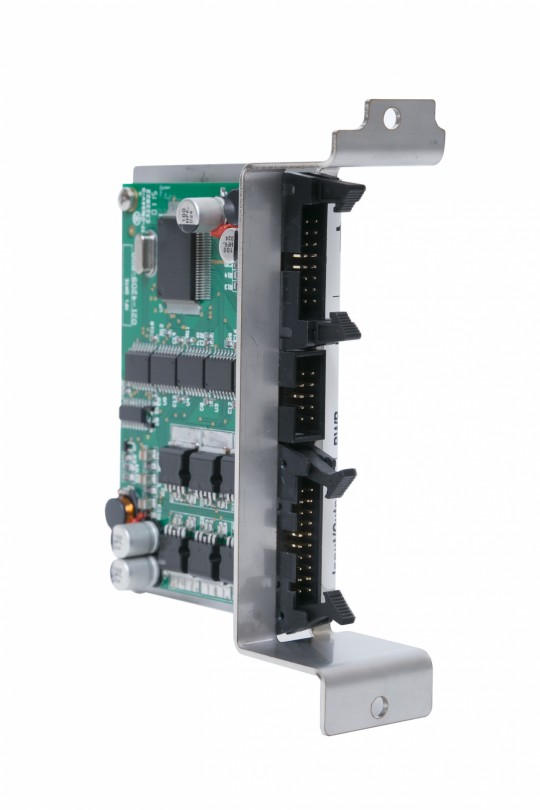

With built-in current sensing and fused outputs this module can perform advanced self-diagnostics functionality. The small form-factor and IDC header termination, allow the module to be embedded within your application in any type of enclosure with your choice of termination. The PCB is conformal coated and extensively tested to ensure performance in the harshest of environments.

Specifications

IO

Digital Outputs 6

Maximum output current 2A

Output type High side driver

Digital Inputs 10

Input logic low 0 to 0.8 VDC

Input logic high > 2 VDC

Minimum input pulse 5 ns

Input type Sinking


General


Communications CAN backplane

Termination IDC

Mounting Screw

Operating temperature -20 to +85C

Dimensions 110x135x30mm


Certification


EMC Standard AS/NZS CISPR 22: 2009 + Amendment 1: 2009

UL - MIL-STD-810G : 2008 Method 516.6 Shock (15G for 11ms over 3 axis)

Method 502.5 Low Temperature (-10⁰C)

Method 501.5 High Temperature (60⁰C)

Method 514.6 Vibration (general over 3 axis)
