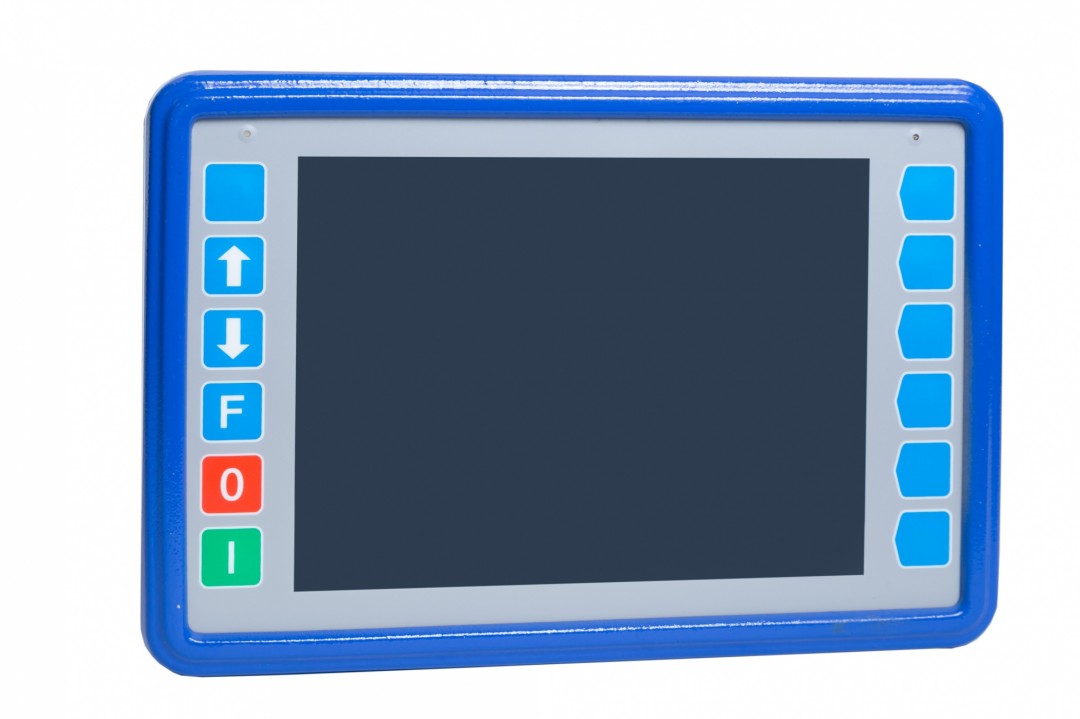

CH HMI



Our industrial controller gives you the unique ability to run real-time process control alongside high end IT applications in a rugged environment.

The controller is designed for harsh environmental applications that require real-time control coupled with high level activities. It transcends many boundaries to bring the best of all worlds together in a highly rugged platform.

The ability to run real-time process control alongside high end IT applications in a rugged environment makes this product very unique. The prioritised multithreading engine ensures that real-time activities are serviced deterministically while IT based activities are run asynchronously.

Firmware and software can be remotely upgradable over a mobile network connected to the Ethernet port so every aspect of the system can be maintained as and when required.

A wealth of I/O modules exist designed to MIL STD 810G and be EMC compliant but speciality modules can also be added to the unit as required (Digital optically isolated I/O, serial (RS-485, RS-232), Lynch Valve, Analogue I/O, mV Input, NTC, etc). Modules can be chassis of remotely mounted.

Features

  • Die cast aluminium case
  • Hardend Autotex XE polyester screen protection
  • 32 bit Windows Embedded Compact operating system
  • Approved for MILSTD810G
  • IP67 sealed enclosure
  • High speed CAN bus for IO expansion
  • Ethernet TCP/IP for Cloud/IT connectivity
  • 10.4” resistive touch screen
  • 12 tactile keys with backlight

Specifications

CPU


TI Applications ProcessorCortex-A8 32-Bit RISC MPU

Max CPU Speed1GHz

L1 Program Cache32KB

L1 Data Cache32KB

L2 Cache256KB

Internal RAM64KB

GraphicsSGX530 3D Graphics Engine (AM3354 and AM3359 only)

PRUSS2 Programmable Real-time Units (AM3359 only)


Memory


RAMUp to 1GB

NOR Flash (Optional)8MB

NAND Flash (Optional)Up to 1GB

SD cardUp to 32GB


LCD Display


Screen Size10.4 (Diagonal) inch

Display Resolution800 RGB x 600 pixel

Dot Pitch0.088 (H) x 0.264 (V) mm

Pixel Pitch0.264 (H) x 0.264 (V) mm

8 Color Depth16.2M colors


General


Voltage24VDC +/15%

Current600mA


Certification


EMC StandardAS/NZS CISPR 22: 2009 + Amendment 1: 2009

UL - MIL-STD-810G : 2008 Method 516.6 Shock (15G for 11ms over 3 axis)

Method 502.5 Low Temperature (-10⁰C)

Method 501.5 High Temperature (60⁰C)

Method 514.6 Vibration (general over 3 axis)


Communications


Ethernet TCP/IPIEEE 802.3

Control Area Network (CAN)

2 x RS-232
