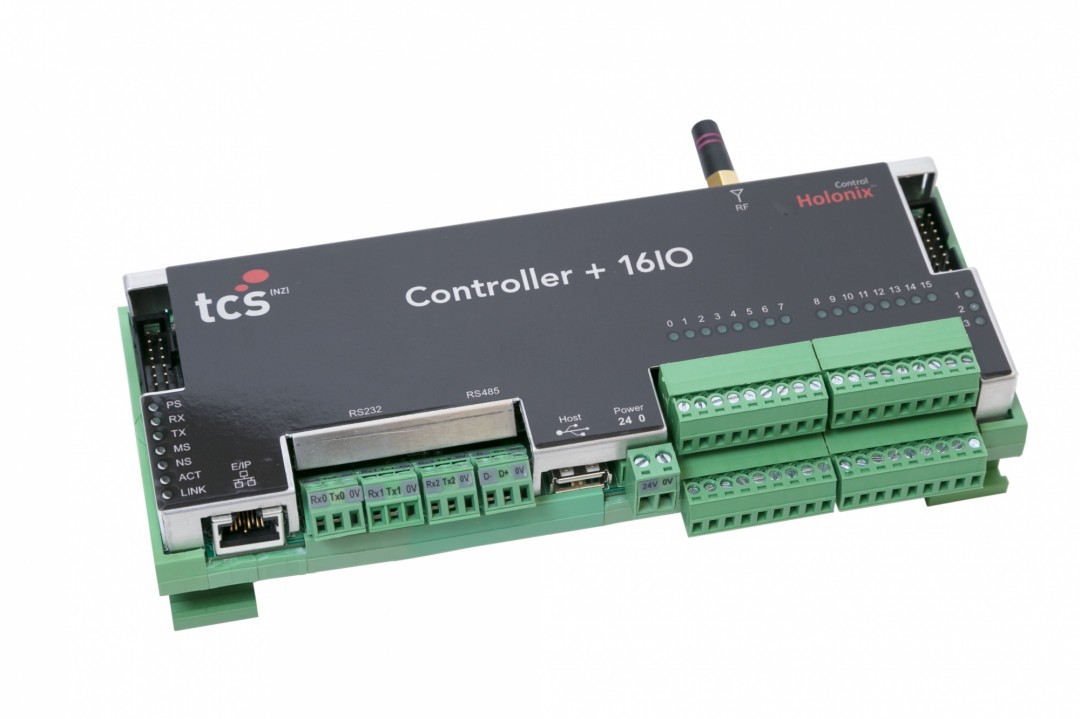

CH Controller + Digital 16 I/O


The ControlHolonix Controller + Digital 16 I/O provides both local or distributed control for automation applications.

  • ARM 9 RISC based processor
  • Ethernet TCP/IP RJ45 port

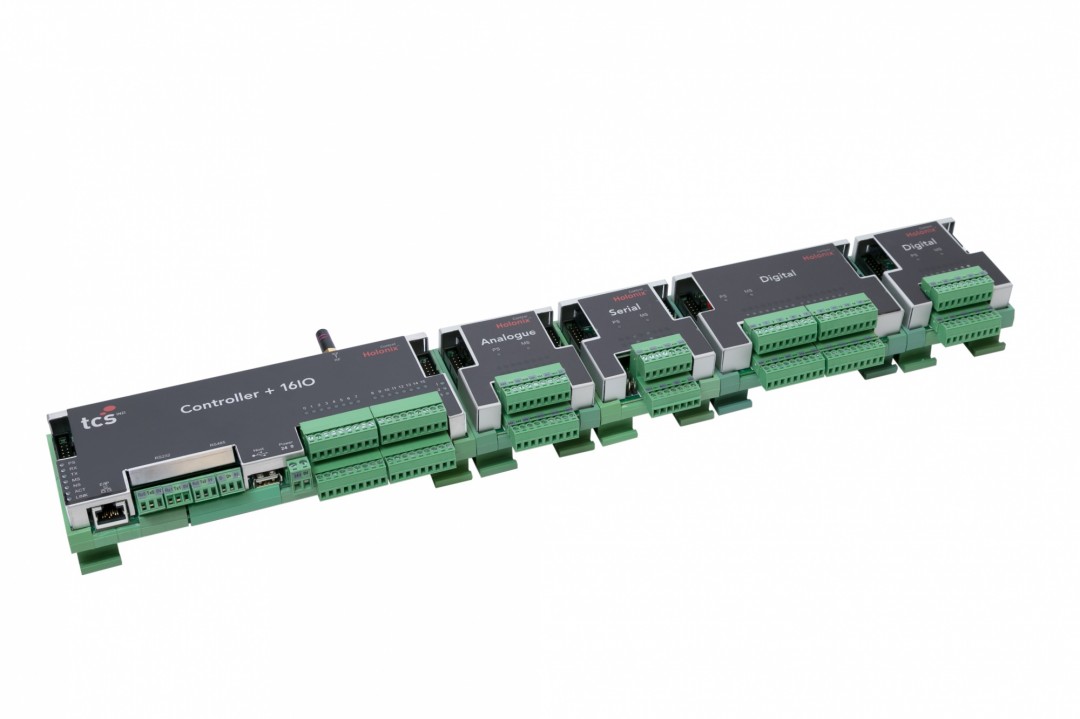

  • I/O backplane over CAN
  • 3 x TX/RX RS-232 ports
  • Microsoft Windows Embedded Compact OS
  • 512MB RAM and 512MB FLASH
  • 2.4GHz wireless 802.15.4 (option)
  • Real-time clock
  • USB client memory expansion port
  • 16 way 24VDC optically isolated combination digital I/O
  • SQLite database
  • Web capable (use a browser to act as your HMI)
  • Range of programming languages*
*Sequential Function Chart, Structured Text, Function Block IEC-61131/61499, C++, C, JAVA, HTML


Ethernet Speed10/100mBits
Module Current100mA @ 24VDC
Voltage Range12 to 24VDC
Operating Temperature-20 to +85 C
