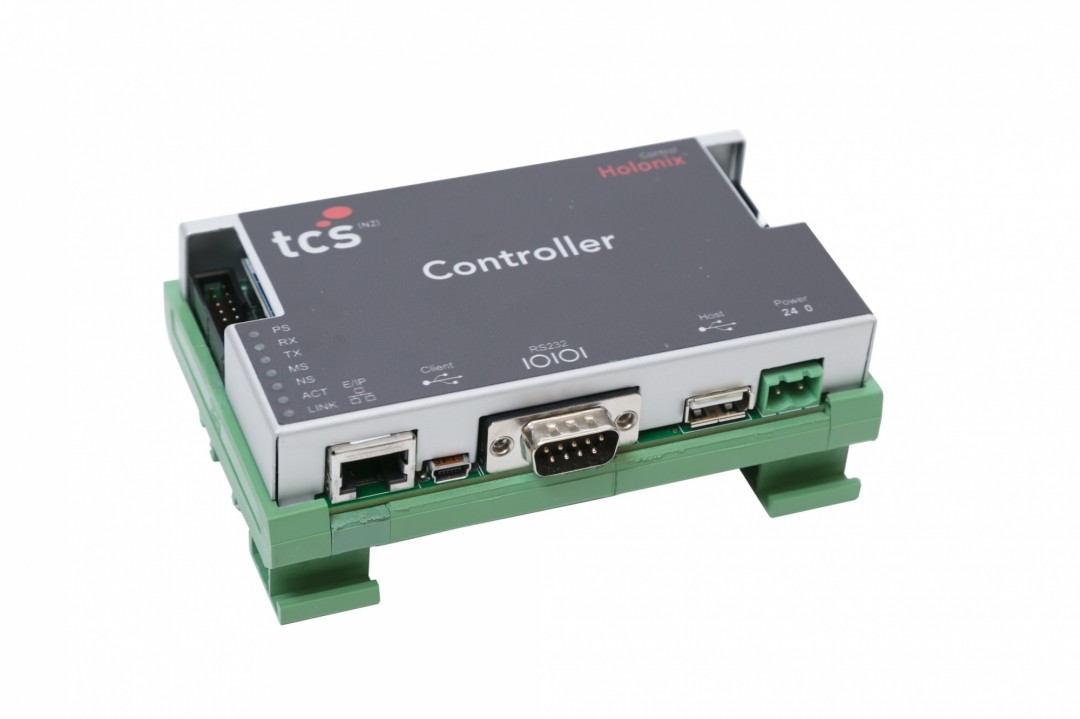

CH Controller


The ControlHolonix controller provides both local or distributed control for automation applications.

  • Microsoft Windows Embedded Compact operating system
  • Resistive touch LCD port
  • Ethernet TCP/IP
  • Internal FTP server
  • 1-3 optically isolated serial ports, one fully configured serial port or three tx/rx only serial ports
  • USB host port
  • USB slave port
  • Ethernet/IP – 100Mbit with industrially grade magnetic and Auto MDIX support
  • 12-24volt power supply input
  • Real-time clock

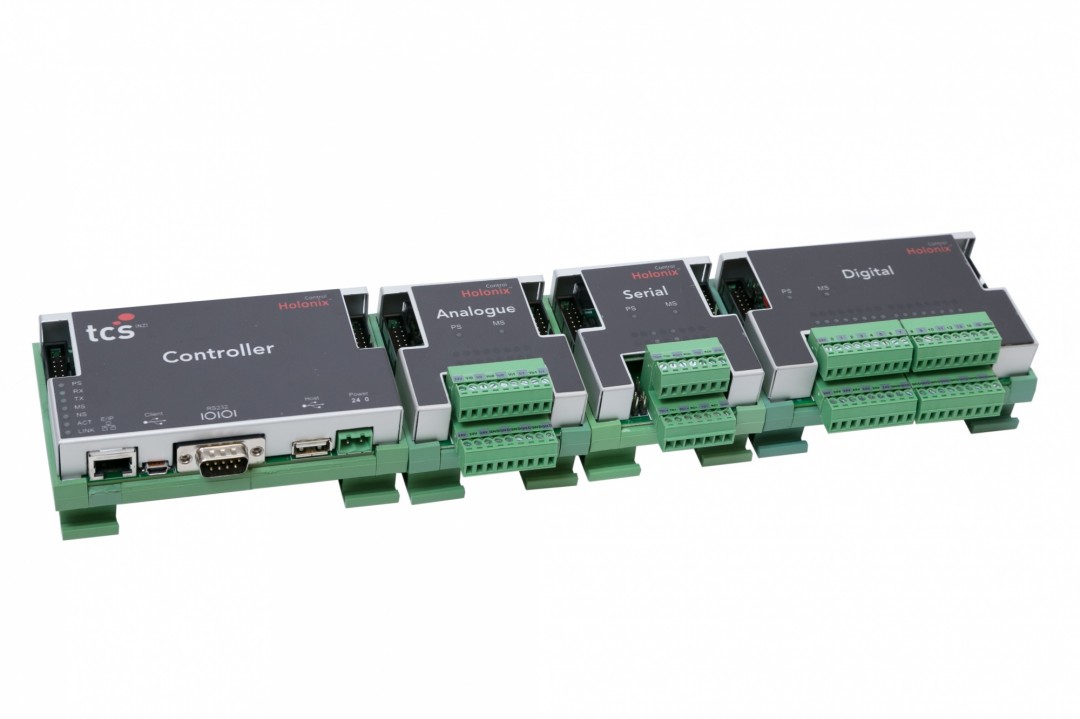

  • CAN backplane (local & Remote I/O
  • Range of programming languages*
*Sequential Function Chart, Structured Text, Function Block IEC-61131/61499, C++, C, JAVA, HTML


Ethernet Speed10/100mBits
Module Current100mA @ 24VDC
Voltage Range10 to 35VDC
Operating Temperature-20 to +85 C
