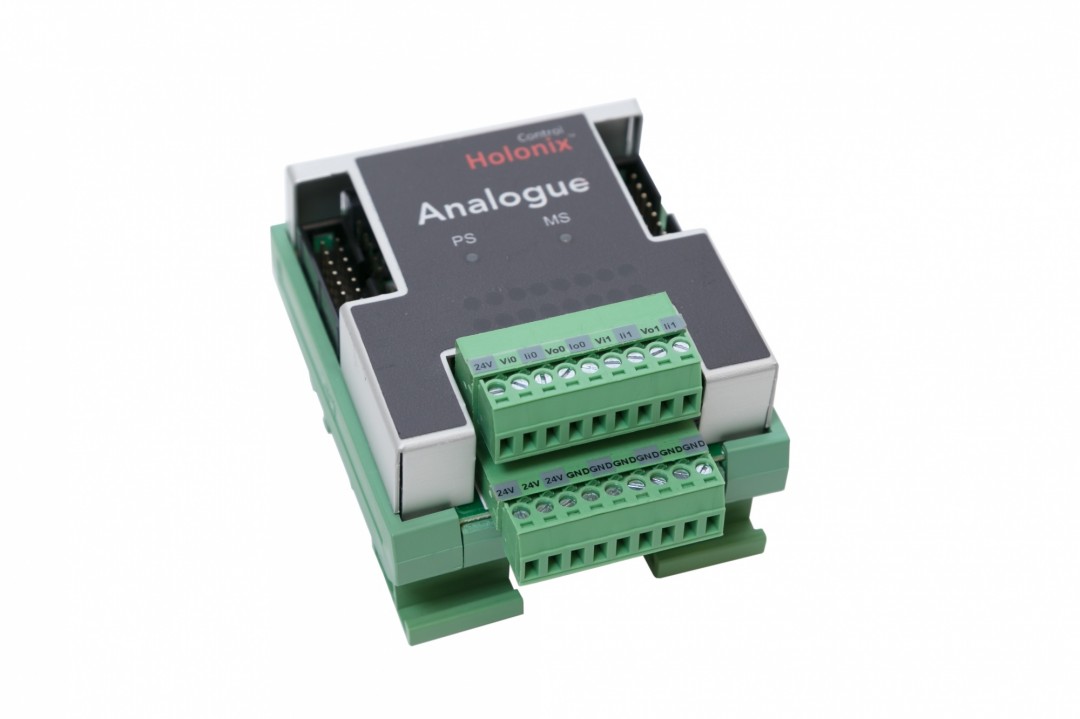

CH Analogue I/O Module



The analogue module provides 2 isolated in and 2 isolated out 4-20ma, 0-10VDC analogue loops for instrumentation connectivity

  • 2 analogue inputs and 2 analogue outputs
  • Current and voltage selectable
  • Optically isolated
  • CAN backplane (local or remote)
  • Easily pluggable field termination
  • DIN rail mounted
  • Module status indication

Specifications

Module Current50mA

Analogue resolution16 bit

Analogue voltage range0-10V

Analogue current range4-20mA

Operating Temperature-25 to +85 C

Dimensions (W x H x L)30mm x 82mm x 115mm
