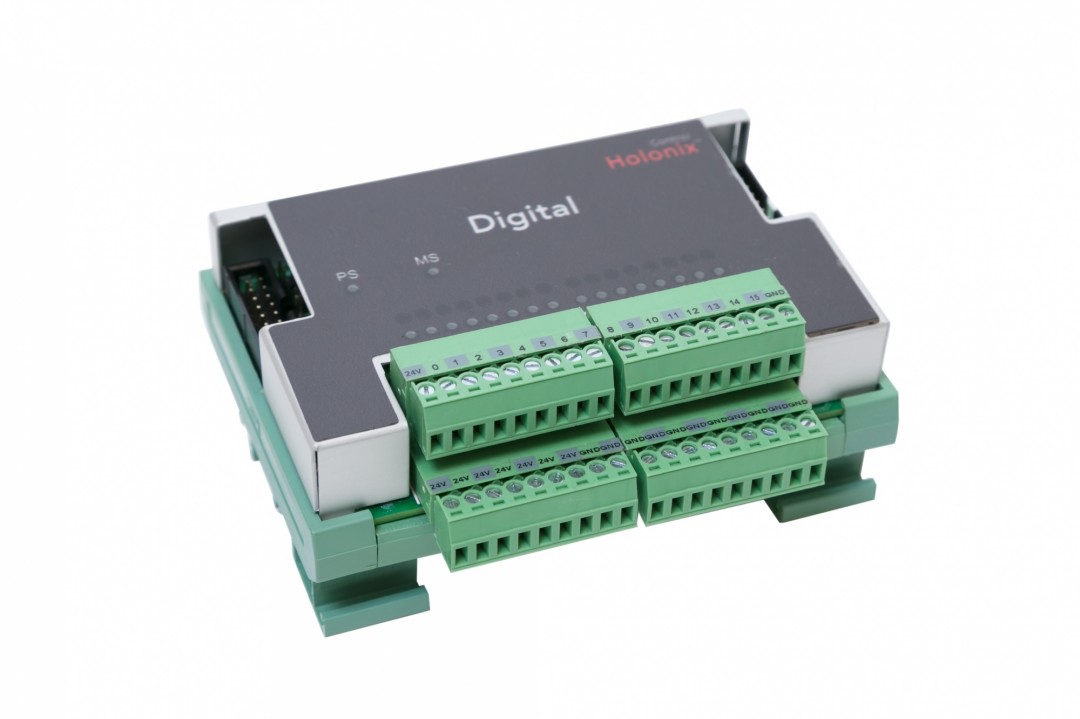

CH 16 way I/O Module


The ControlHolonix 16 way combination I/O module allows you to chose your I/O requirements exactly.

  • 16 way 24VDC optically isolated combination digital I/O
  • CAN backplane (local or remote)
  • Easy pluggable field termination
  • Dual section electronically fused
  • I/O and module status indication


Number of I/O16
Input TypeSinking
Module Current4 Amp @ 24VDC
Voltage Range10 to 30VDC
Operating Temperature-20 to +85C
Dimensions (W x H x L)78mm x 68mm x 67mm
