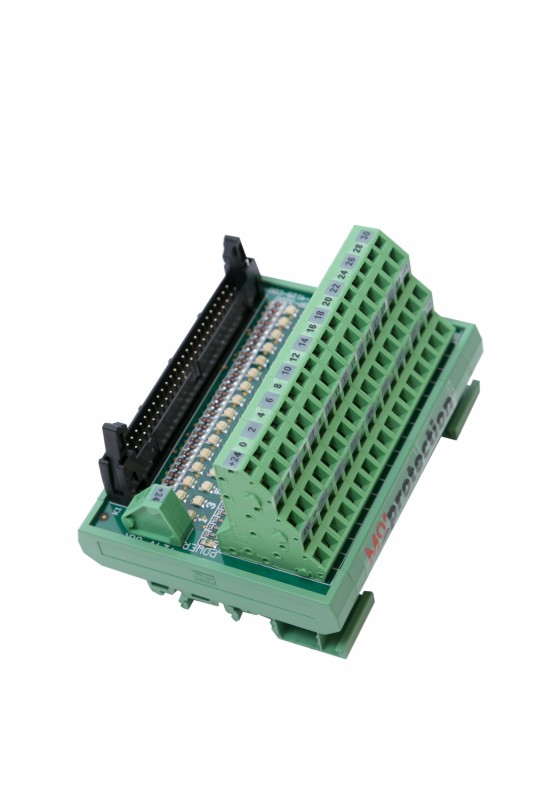

Compact 32 Way Digital Output Module

#CMOP-32DO



  • 32 way individually electronically fused outputs
  • Numbering systems to suit different PLCs
  • Spring cage connectors
  • Blown fuse indication
  • On / Off LED indication
  • DIN rail mount
  • Common ribbon cable configuration

Designed to save space requirements inside the cabinet.

Save time and cost while protecting your valuable automation investment.

Note: PLC to module wiring assembly is not included with the fuse block – order separately. Cabling comes factory assembled and tested – just plug it in, connect the field wiring and run.

This product is designed to meet Council Directive 73/23/EEC low voltage, by applying the safety requirements EN 61131-2. This equipment is classified as open equipment and must be installed (mounted) in an enclosure during operation as a means of providing safety protection

Specifications

Fuse TypeNon-conductive crystalline polymer

Fuse Group CurrentHold 750mA per outputTrip 1.5A per output

Module Current5 Amps @ 24VDC

Voltage Range10 to 48VDC

Operating Temperature0̊ to 60̊ C

Dimensions (W x H x L)78mm x 51mm x 101mm
