Device Controller (24V)



This compact unit provides the distributed I/O points that connect a cluster of devices in an area.

Capable of controlling lighting and other 24V DC loads such as the extractor fans, relays to switch 230V AC loads,
damper motors, etc.

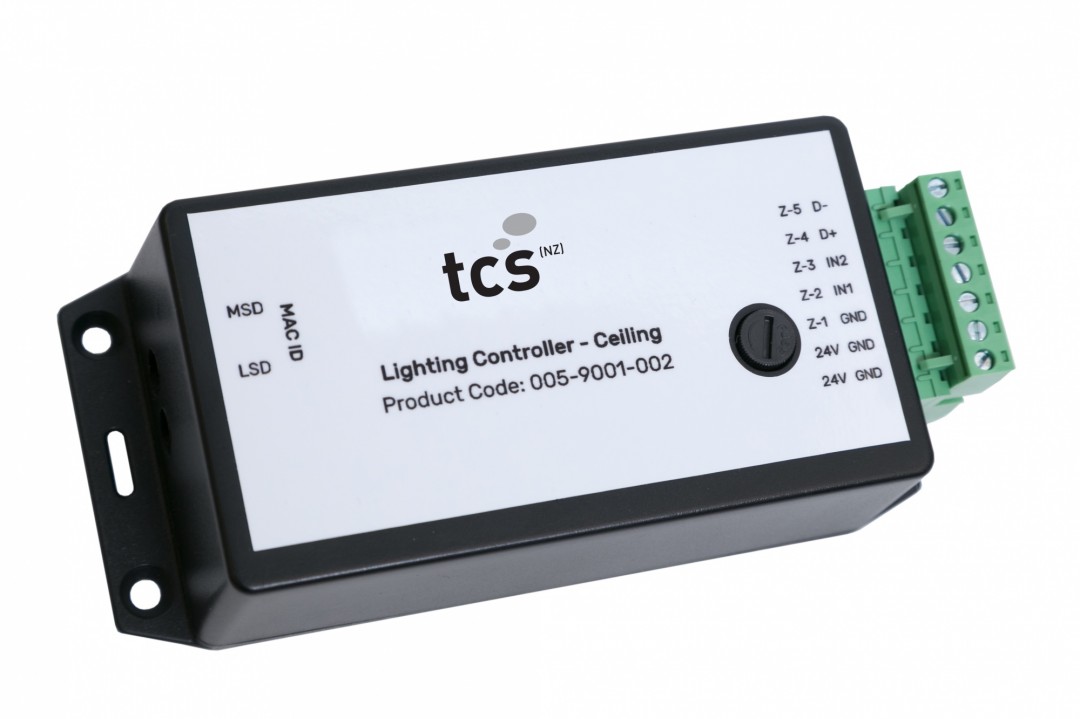

A ceiling mounted version is also available if required. It supports all the same features as the wall recessed
lighting controller. The ceiling mounted version can be used to go into a recessed light cavity in the ceiling or be
fixed to a support.

Features

  • 1 digital input
  • 5 digital output zones with PWM capability
  • Built in current draw sensing and short circuit protection
  • Wall recessed or surface mounted

Specifications

Outputs

Number of outputs5

Output technologyPWM capable high side driver

Rated load voltage10V DC - 32V DC

Load typeResistive, inductive, lamp load

Max output current2.2A (short-circuit proof) per zone

IndicationOutput status LEDs (wall recessed version only)

Total module output current10A

Variable current1.5-2.2A current limit adjustable zone

Inputs

Number of inputs1

Nominal voltage10V DC - 32V DC

General

Permissable ambient temperature-25⁰C to 70⁰C

Protection classIP20

EMC emissionsConforms to EN 55022/CISPR 22

Dimensions (W x H x D)Wall mounted - 165mm x 135mm x 55mm
Ceiling mounted - 145mm x 65mm x 45mm

CommunicationsAta-Touch 485, node addressable
