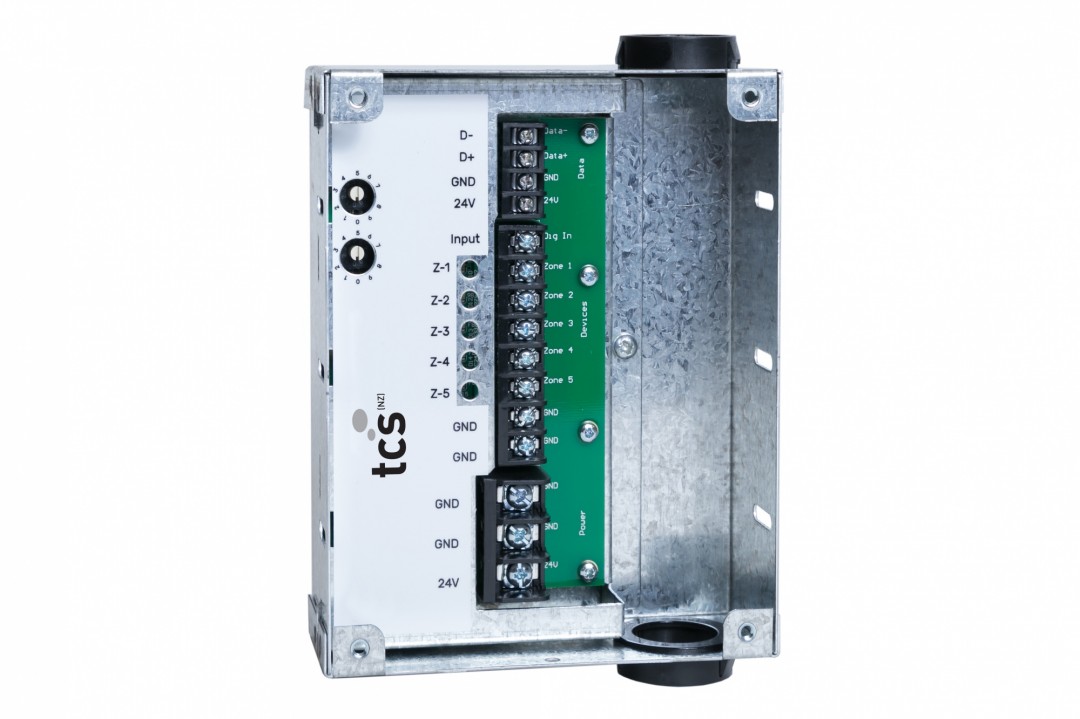

Device Controller (0-250 AC/DC)


This device controller provides the distributed I/O points that allows you to connect 230VAC devices such as feature lights, blinds and windows.

The device controller provides five normally open clean contact outputs that are fed from a common power supply (0 to 250 volts AC or DC) that can be used to control any device under 2.5 Amps.
Devices such as:

  • Feature lighting
  • Extractor fans
  • Blinds
  • Curtains
  • Gas operated fires
  • Window servos


  • 5 x normally open clean contacts
  • Wall recessed
  • Node addressable
  • Common power supply
  • Slow blow glass fuse protected at 10Amps


Output Type5 x Normally open contacts
Voltage0-250 Volts AC/DC
Module current10 Amp (Glass fuse protected)
Output current2.5 Amp
Permissable ambient temperature-25⁰C to 70⁰C
Protection classIP20
EMC emissionsConforms to EN 55022/CISPR 22

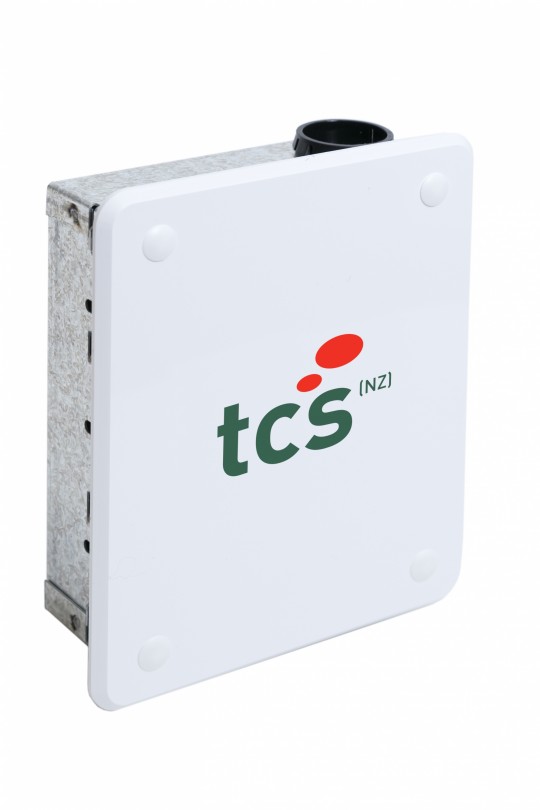

Dimensions (W x H x D)Wall mounted - 165mm x 135mm x 55mm
Ceiling mounted - 145mm x 65mm x 45mm
CommunicationsAta-Touch 485, node addressable
