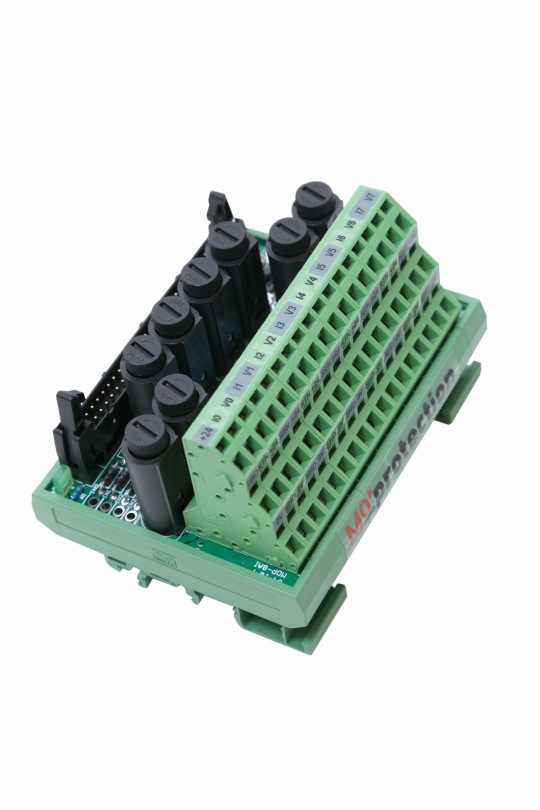

8 Way Analogue Input Module



  • 8 x channel analogue input
  • Current / voltage input or single ended / differential
  • Numbering systems to suit different PLCs
  • Spring cage connectors
  • Individual glass fuse protection
  • DIP switches for channel configuration
  • In-circuit current test points
  • DIN rail mount
  • Common ribbon cable configuration

Save time and cost while protecting your valuable automation investment.

Note: PLC to module wiring assembly is not included with the fuse block – order separately. Cabling comes factory assembled and tested- just plug it in, connect the field wiring and run.

This product is designed to meet Council Directive 73/23/EEC low voltage, by applying the safety requirements EN 61131-2. This equipment is classified as open equipment and must be installed (mounted) in an enclosure during operation as a means of providing safety protection


Fuse TypeGlass 100mA
Fuse Group Current100mA per channel
Module Current1.0 Amp
Voltage Range10 to 32VDC
Operating Temperature0̊ to 60̊ C
Dimensions (W x H x L)78mm x 66mm x 102mm
