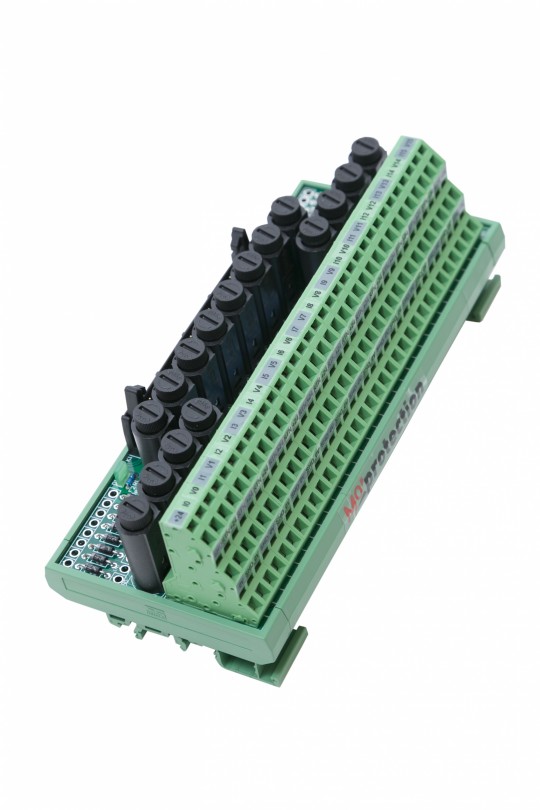

16 Way Analogue Input Module



  • Single ended current
  • Individual glass fusing
  • 8 x 0VE and shielding termination points
  • In circuit current testing
  • Power on/off LED indication
  • 50 way IDC header with standard ribbon cable to any make of PLC
  • DIN rail mounted
  • Numbering to match the PLC module type

Save time and cost while protecting your valuable automation investment.

Note: PLC to module wiring assembly is not included with the fuse block – order separately. Cabling comes factory assembled and tested- just plug it in, connect the field wiring and run.

This product is designed to meet Council Directive 73/23/EEC low voltage, by applying the safety requirements EN 61131-2. This equipment is classified as open equipment and must be installed (mounted) in an enclosure during operation as a means of providing safety protection


Fuse TypeGlass 100mA
Fuse Group Current100mA per channel
Module Current1.0 Amp
Voltage Range10 to 32VDC
Operating Temperature0̊ to 60̊ C
Dimensions (W x H x L)78mm x 66mm x 180mm
